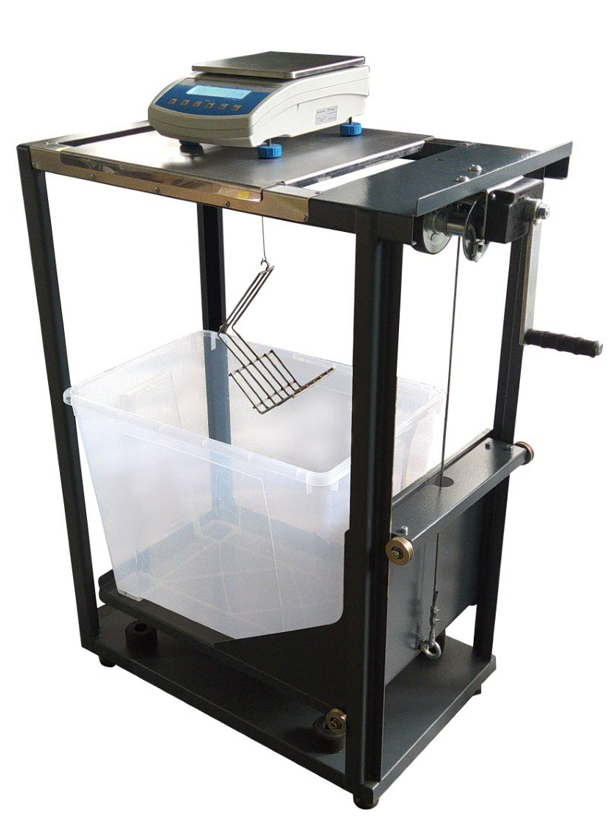

Specific Gravity Frame
RT-MG-008 used for specific gravity determination of concrete, asphalt, aggregates etc. with a suitable balance fitted with under-pan weighing facility. The specific gravity frame has a rugged structure with an underneath adjustable for height platform driven by self-braking manual winch. The RT-MG-008 is supplied complete with water tank. The cradle and balance are not included and must be ordered separately.
Standards
EN 1097-6, EN 12390-7, EN 12697-6
ASTM C127, ASTM D2726
AASHTO T85, AASHTO T166
Accessories
- RT-MG-008/zTPlastic water tank with internal dimensions 370x370x300 mm (LxWxD)
- RT-MG-008/zCCradle for specimens
- RT-MG-001/80DCWater bath for specific gravity frame, 80 L cap.
Related products
- RD-MG-029/621Precision Balance up to 6 kg ± 0.01 g with under-pan weighing hook
- RD-MG-029/1021Precision Balance up to 10 kg ± 0.01 g with under-pan weighing hook
- RD-MG-029/1011Precision Balance up to 10 kg ± 0.1 g with under-pan weighing hook
- RD-MG-029/2011 Precision Balance up to 20 kg ± 0.1 g with under-pan weighing hook
- RD-MG-029/622Advanced-class Precision Balance up to 6 kg ± 0.01 g with under-pan weighing hook
- RD-MG-029/1022 Advanced-class Precision Balance up to 10 kg ± 0.01 g with under-pan weighing hook
- RD-MG-029/1012Advanced-class Precision Balance up to 10 kg ± 0.1 g with under-pan weighing hook
- RD-MG-029/2012Advanced-class Precision Balance up to 20 kg ± 0.1 g with under-pan weighing hook
Technical specifications
| RT-MG-008 | RT-MG-008/W | |
|---|---|---|
| Dimensions (LxWxH) | 710x440x1000 mm | 900x440x1000 mm |
| Weight (approx.) | 35 kg | 50 kg |
Specific Gravity Frame
- RT-MG-008 – Specific Gravity Frame
- RT-MG-008/W – Widened Specific Gravity Frame

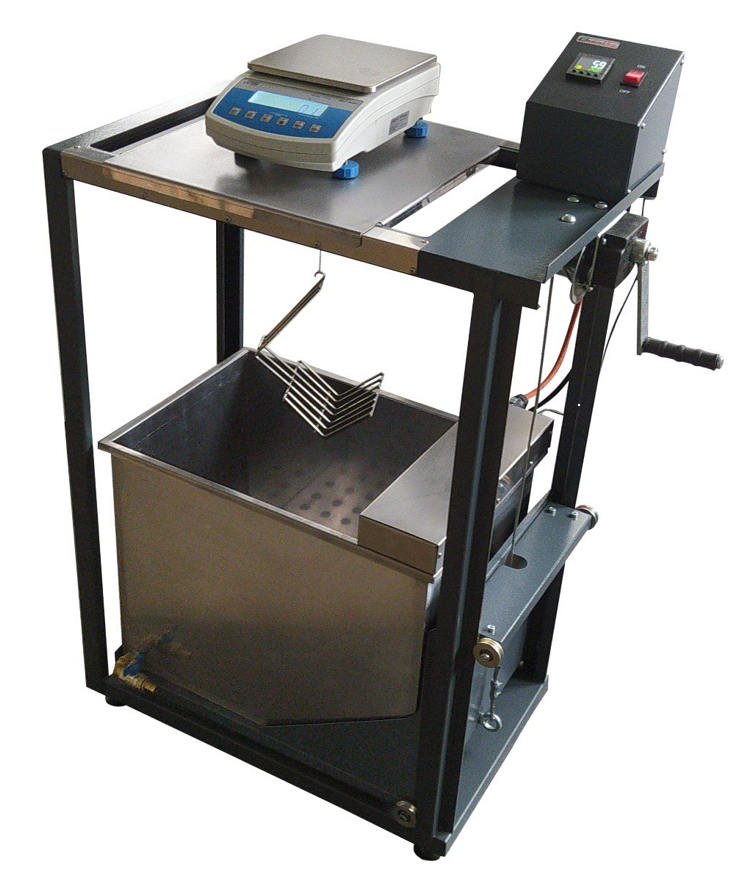

- RT-MG-008/W complete with RT-MG-001/80DC
